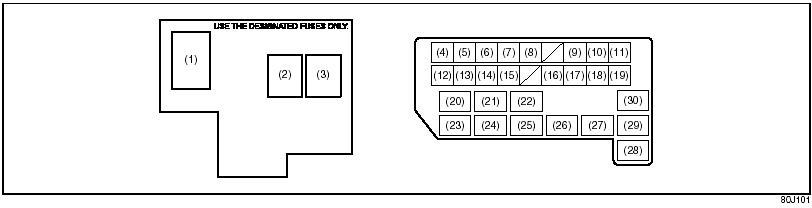

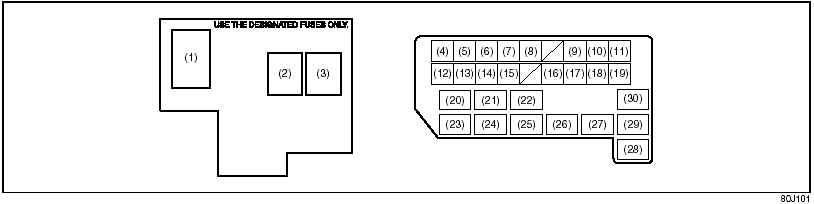

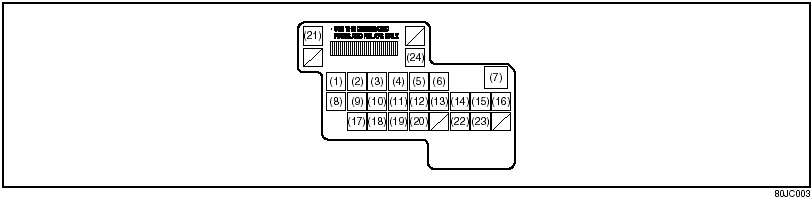

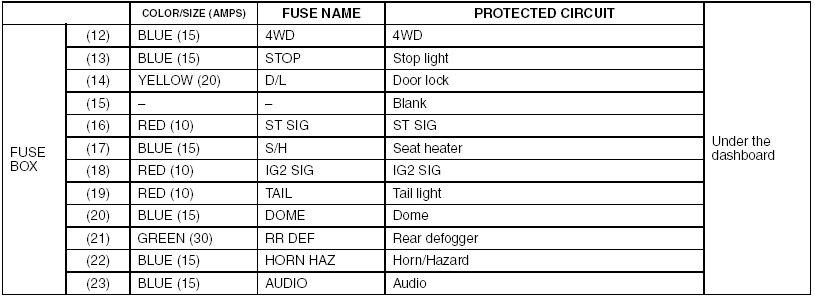

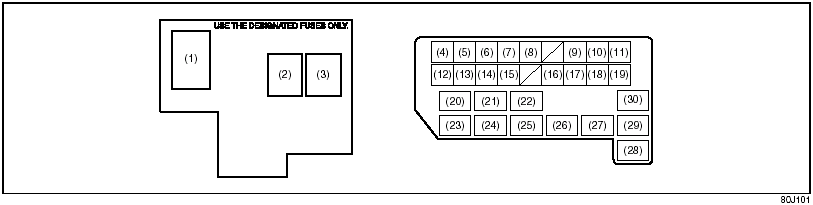

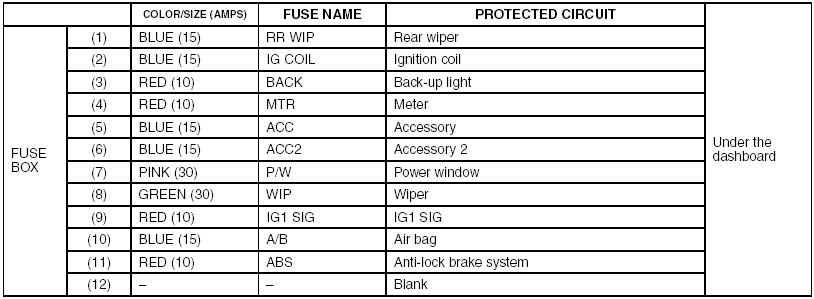

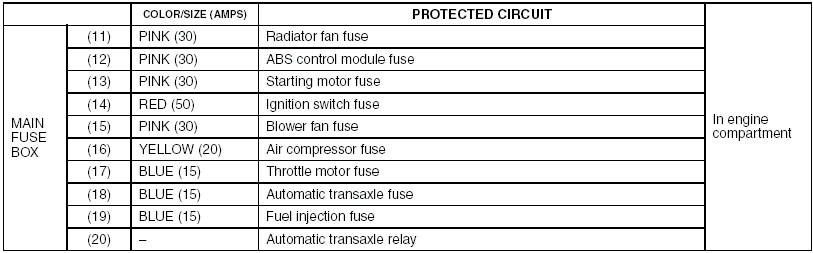

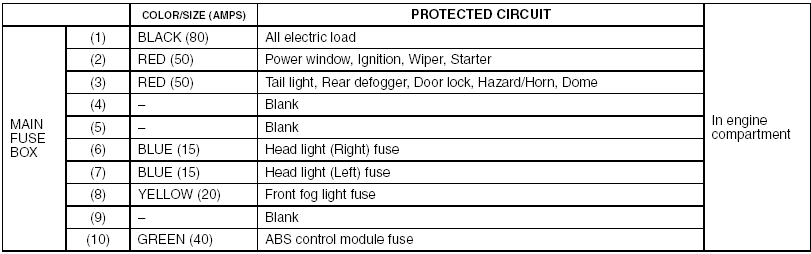

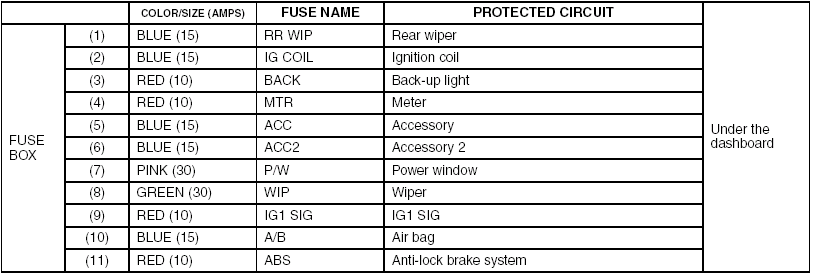

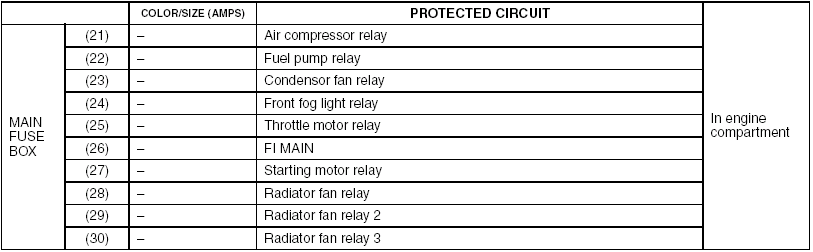

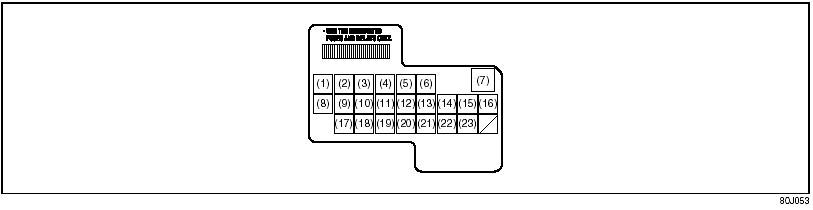

Fuses and Protected Circuits

Suzuki SX4 / Suzuki SX4 Owners Manual / Fuses and Protected Circuits






SX4


SX4




SX4 SEDAN


SX4 SEDAN




Specifications
