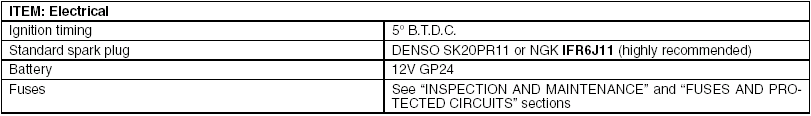

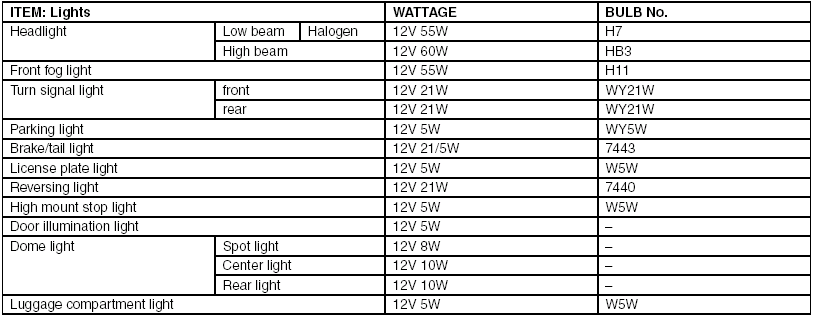

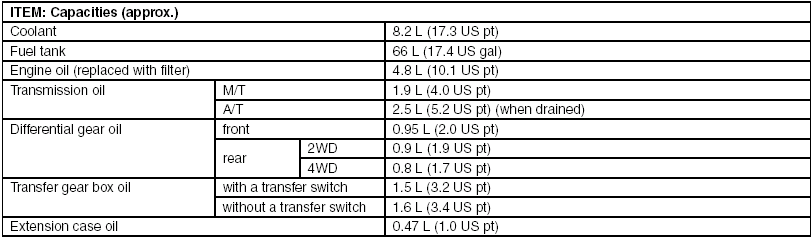

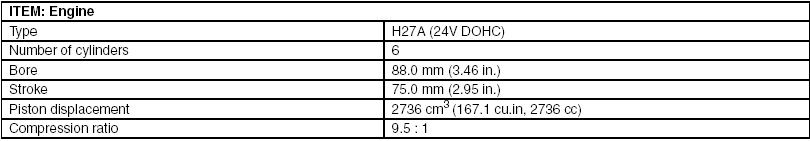

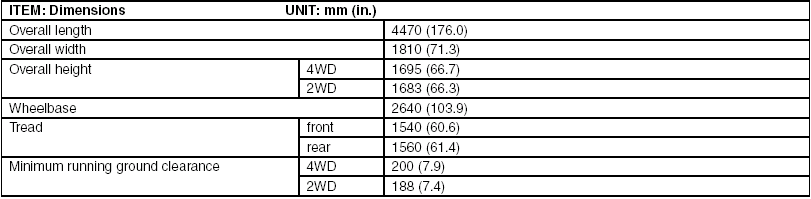

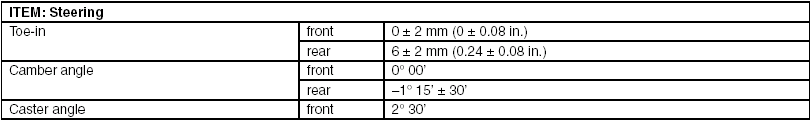

Specifications
NOTE:
Specifications are subject to change without
notice.
4WD: 4-wheel drive.
2WD: 2-wheel drive.
M/T: Manual transmission.
A/T: Automatic transmission.
