Applicable to every device

Radio

CD

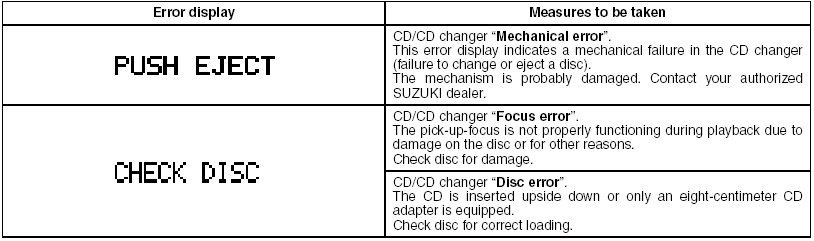

Error display
This unit has a number of self-diagnostic functions to protect the system.
If a problem should occur, the display shows the type of error. Refer to the table below and take proper measures to correct the problem.
If the problem is corrected, the unit will operate normally.

If an error display not listed above appears, turn off the unit and contact your SUZUKI dealer.
