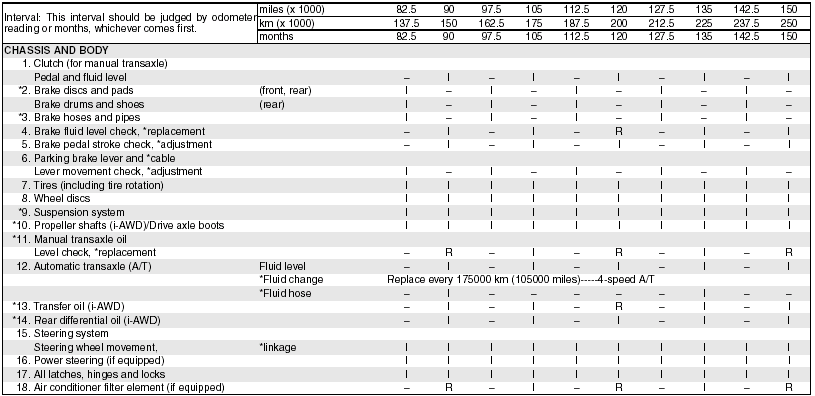

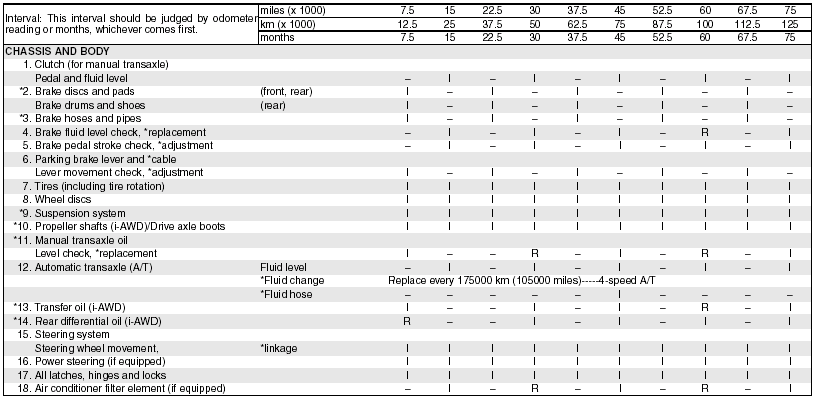

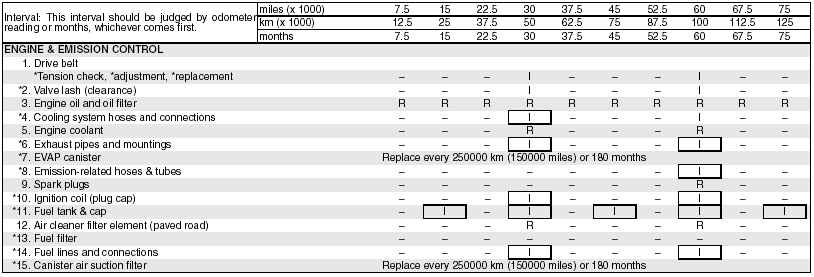

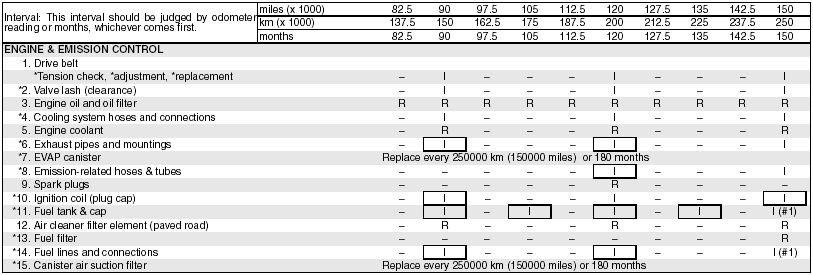

Periodic Maintenance Schedule

R: Replace or change


R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary

R: Replace or change


R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary

#1: Inspect at 250000 km (150000 miles) or 180 months.

NOTE:
The maintenance services enclosed with rectangle are recommended maintenance items.

The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform recommended maintenance items enclosed with a rectangle will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life. SUZUKI, however, urges that all recommended maintenance services be performed at the indicated intervals and the maintenance recorded.

R: Replace or change


R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary

R: Replace or change


R: Replace or change
I : Inspect, clean, adjust, lubricate or replace as necessary

NOTE:
This table shows the service schedule up to 250000 km (150000 miles).

Beyond 250000 km (150000 miles), perform the same services at the same intervals shown in the chart.

Beyond 250000 km (150000 miles), the maintenance services enclosed with a rectangle are required.
