Instrument Cluster

Instrument Cluster
Instrument Cluster

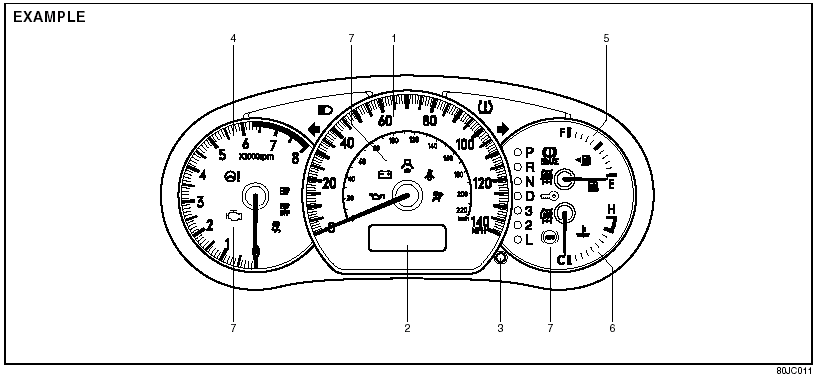

1. Speedometer
2. Odometer/Trip meter
3. Odometer/Trip meter selector knob 4. Tachometer
5. Fuel gauge
6. Temperature gauge
7. Warning and indicator lights
