Instrument Panel

Instrument Panel
Instrument Panel

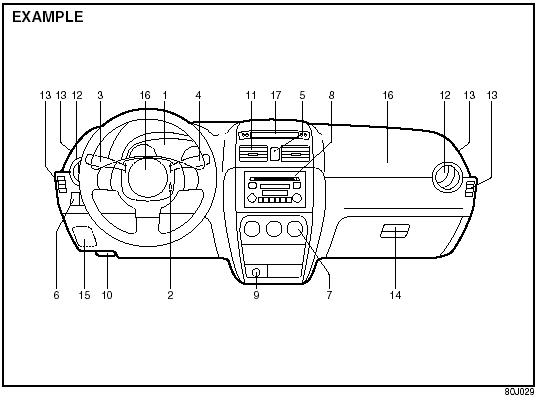

1. Instrument cluster 2. Ignition switch
3. Lighting switch/Turn signal and dimmer switch 4. Windshield wiper and washer switch/ Rear window wiper and washer switch (if equipped) 5. Hazard warning switch 6. Other switches (if equipped) 7. Heater control panel
8. Audio (if equipped)
9. Cigarette lighter/ashtray or storage area 10. Hood release
11. Center ventilator
12. Side ventilator
13. Side defroster
14. Glove box
15. Fuse box
16. Air bag
17. Information display
