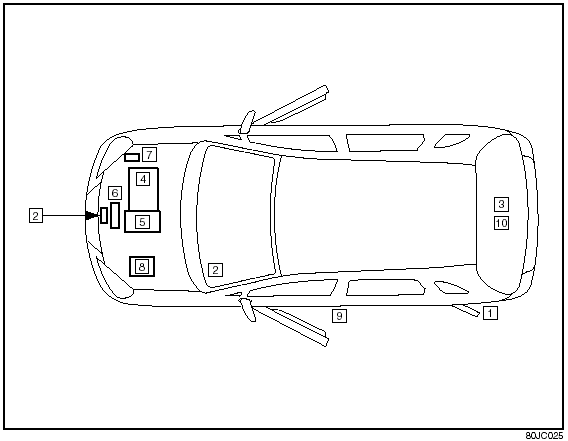

1. Fuel.
1. Fuel.

2. Engine hood.

3. Tire changing tools.

4. Engine oil dipstick <Yellow>.

5. Automatic transaxle fluid dipstick <Red>.

6. Engine coolant.

7. Windshield washer fluid.

8. Battery.

9. Tire pressure (see tire information label on driver’s door lock pillar) 10. Spare tire.
